Stepper motors

스테퍼모터

■ Stepper motors(스테퍼모터)는 3가지의 제품시리즈로 분류
  ▶ X-NMS & X-NMS-E Series: Stepper motors with built-in controllers and motor encoders
  ▶ NM Series: Stepper motors
■ 제품별 주요 특징은 하단 설명 참조

  • X-NMS & X-NMS-E Series: Stepper motors with built-in controllers and motor encoders
      ■ NEMA 17 stepper motor with built-in controller
      ■ Up to 25,600 microsteps per revolution
      ■ Up to 2,650 rpm speed and 30 N-cm torque
      ■ Home sensor and small magnet included, optional magnetic away sensor
      ■ Daisy-chains data and power with X-series products

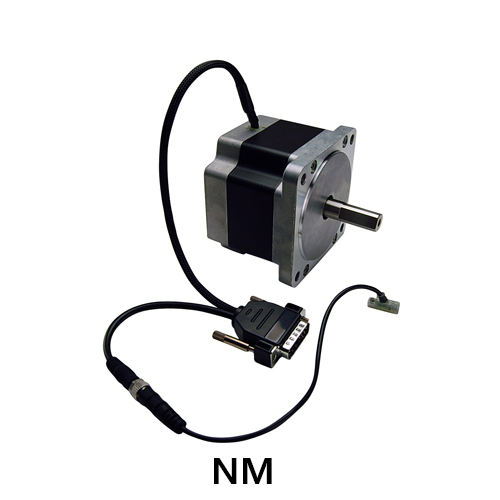

    NM Series: Stepper motors
      ■ Standard NEMA frame stepper motors
      ■ Available in size 8 to 34 for a variety of torques and speeds with single or double shaft
      ■ Home sensor (HSM8) and small magnet included
      ■ Designed for use with an X-MCB1 Series stepper motor controller or any 2-phase stepper motor controller




    • Stepper motors
    상세 규격 표
    Cat. No. Model Description
    M01-680-750 X-NMS17C-E01-KX13C Stepper motor with RS-232 controller, NEMA size 17, with motor encoder, North America, 48 V. Powers one axis
    M01-680-755 X-NMS17C-WE01-KX13C Stepper motor with RS-232 controller, NEMA size 17, with motor encoder and away sensor, North America, 48 V. Powers one axis
    M01-680-760 X-NMS17C-KX13C Stepper motor with RS-232 controller, NEMA size 17, North America, 48 V. Powers one axis
    M01-680-765 X-NMS17C-W-KX14C Stepper motor with RS-232 controller, NEMA size 17, with away sensor, North America, 48 V. Powers multiple axes
    M01-680-770 X-NMS17C-W-PTB2 Stepper motor with RS-232 controller, NEMA size 17, with away sensor, Not Included
    M01-680-775 NM08AD-T4-MC04-HSM8 Stepper motor with home sensor, NEMA size 08 x 33 mm, double shaft,X-MCB1 (24 V) Recommended
    M01-680-780 NM08AS-T4-MC04-HSM8 Stepper motor with home sensor, NEMA size 08 x 33 mm, single shaft,X-MCB1 (24 V) Recommended
    M01-680-785 NM08BD-T4-MC04-HSM8 Stepper motor with home sensor, NEMA size 08 x 43 mm, double shaft,X-MCB1 (24 V) Recommended
    M01-680-790 NM08BS-T4-MC04-HSM8 Stepper motor with home sensor, NEMA size 08 x 43 mm, single shaft,X-MCB1 (24 V) Recommended
    M01-680-795 NM11AD-T4-MC04-HSM8 Stepper motor with home sensor, NEMA size 11 x 32 mm, double shaft,X-MCB1 (24 V) Recommended
    M01-680-800 NM11AS-T4-MC04-HSM8 Stepper motor with home sensor, NEMA size 11 x 32 mm, single shaft,X-MCB1 (24 V) Recommended
    M01-680-805 NM11CD-T4-MC04-HSM8 Stepper motor with home sensor, NEMA size 11 x 40 mm, double shaft,X-MCB1 (24 V) Recommended
    M01-680-810 NM11CS-T4-MC04-HSM8 Stepper motor with home sensor, NEMA size 11 x 40 mm, single shaft,X-MCB1 (24 V) Recommended
    M01-680-815 NM17AD-T4-MC04-HSM8 Stepper motor with home sensor, NEMA size 17 x 33 mm, double shaft,X-MCB1 (48 V) Recommended
    M01-680-820 NM17AS-T4-MC04-HSM8 Stepper motor with home sensor, NEMA size 17 x 33 mm, single shaft,X-MCB1 (48 V) Recommended
    M01-680-825 NM17CD-T4-MC04-HSM8 Stepper motor with home sensor, NEMA size 17 x 47 mm, double shaft,X-MCB1 (48 V) Recommended
    M01-680-830 NM17CS-T4-MC04-HSM8 Stepper motor with home sensor, NEMA size 17 x 47 mm, single shaft,X-MCB1 (48 V) Recommended
    M01-680-835 NM23AD-T4-MC04-HSM8 Stepper motor with home sensor, NEMA size 23 x 39 mm, double shaft,X-MCB1 (48 V) Recommended
    M01-680-840 NM23AS-T4-MC04-HSM8 Stepper motor with home sensor, NEMA size 23 x 39 mm, single shaft,X-MCB1 (48 V) Recommended
    M01-680-845 NM23CD-T4-MC04-HSM8 Stepper motor with home sensor, NEMA size 23 x 47 mm, double shaft,X-MCB1 (48 V) Recommended
    M01-680-850 NM23CS-T4-MC04-HSM8 Stepper motor with home sensor, NEMA size 23 x 47 mm, single shaft,X-MCB1 (48 V) Recommended
    M01-680-855 NM34AD-T4-MC04-HSM8 Stepper motor with home sensor, NEMA size 34 x 66 mm, double shaft,X-MCB1 (48 V) Recommended
    M01-680-860 NM34AS-T4-MC04-HSM8 Stepper motor with home sensor, NEMA size 34 x 66 mm, single shaft,X-MCB1 (48 V) Recommended
    M01-680-865 NM34CD-T4-MC04-HSM8 Stepper motor with home sensor, NEMA size 34 x 126 mm, double shaft,X-MCB1 (48 V) Recommended
    M01-680-870 NM34CS-T4-MC04-HSM8 Stepper motor with home sensor, NEMA size 34 x 126 mm, single shaft,X-MCB1 (48 V) Recommended
    • Stepper motors Specification
    상세 규격 표
    Specification
    Value Value Value
    Model X-NMS-E Series X-NMS Series NM Series
    Microstep Size (Default Resolution) 0.028125 degrees 0.028125 degrees 0.028125 degrees
    Built-in Controller Yes Yes No
    Accuracy (unidirectional) 0.25 degrees 0.25 degrees
    Repeatability < 0.1 degrees < 0.1 degrees
    Maximum Speed 15900 deg/s 15900 deg/s
    Minimum Speed 0.264 deg/s 0.264 deg/s 0.1318 deg/s
    Speed Resolution 0.264 deg/s 0.264 deg/s 0.1318 deg/s
    Encoder Resolution 500 CPR
    Encoder Type Motor mounted rotary quadrature encoder None None
    Communication Interface RS-232 RS-232
    Communication Protocol Zaber ASCII (Default), Zaber Binary Zaber ASCII (Default), Zaber Binary
    Maximum Torque 30 N-cm 30 N-cm
    Maximum Current Draw 1200 mA 1200 mA
    Power Supply 24-48 VDC 24-48 VDC
    Power Plug 2-pin Screw Terminal 2-pin Screw Terminal
    Motor Steps Per Rev 200 200 200
    Motor Type Stepper (2 phase) Stepper (2 phase) Stepper (2 phase)
    Motor Rated Current 2300 mA/phase 2300 mA/phase D-sub 15
    Motor Rated Power 11.6 Watts 11.6 Watts Magnetic home sensor
    Default Resolution 1/64 of a step 1/64 of a step
    Data Cable Connection Locking 4-pin M8 Locking 4-pin M8
    Motor Frame Size NEMA 17 NEMA 17
    Motor Shaft Diameter 5 mm 5 mm
    LED Indicators Yes Yes
    Mounting Interface 4 M3 tapped holes 31 mm apart 4 M3 tapped holes 31 mm apart
    Vacuum Compatible No No No
    Operating Temperature Range 0 to 50 degrees C 0 to 50 degrees C 0 to 75 degrees C
    RoHS Compliant Yes Yes Yes
    CE Compliant Yes Yes Yes

Cat. No Model Description Unit Price(VAT별도) 주문
  M01-680-750 X-NMS17C-E01-KX13C  Stepper motor with RS-232 controller NEMA size 17 with motor encoder 1/EA 단종
  M01-680-755 X-NMS17C-WE01-KX13C  Stepper motor with RS-232 controller NEMA size 17 with motor encoder and away sensor 1/EA 단종
  M01-680-760 X-NMS17C-KX13C  Stepper motor with RS-232 controller NEMA size 17 1/EA 단종
  M01-680-765 X-NMS17C-W-KX14C  Stepper motor with RS-232 controller NEMA size 17 with away sensor 1/EA 단종
  M01-680-770 X-NMS17C-W-PTB2  Stepper motor with RS-232 controller NEMA size 17 with away sensor 1/EA 단종
  M01-680-775 NM08AD-T4-MC04-HSM8  Stepper motor with home sensor NEMA size 08 x 33 mm double shaft 1/EA 단종
  M01-680-780 NM08AS-T4-MC04-HSM8  Stepper motor with home sensor NEMA size 08 x 33 mm single shaft 1/EA 단종
  M01-680-785 NM08BD-T4-MC04-HSM8  Stepper motor with home sensor NEMA size 08 x 43 mm double shaft 1/EA 단종
  M01-680-790 NM08BS-T4-MC04-HSM8  Stepper motor with home sensor NEMA size 08 x 43 mm single shaft 1/EA 단종
  M01-680-795 NM11AD-T4-MC04-HSM8  Stepper motor with home sensor NEMA size 11 x 32 mm double shaft 1/EA 단종
  M01-680-800 NM11AS-T4-MC04-HSM8  Stepper motor with home sensor NEMA size 11 x 32 mm single shaft 1/EA 단종
  M01-680-805 NM11CD-T4-MC04-HSM8  Stepper motor with home sensor NEMA size 11 x 40 mm double shaft 1/EA 단종
  M01-680-810 NM11CS-T4-MC04-HSM8  Stepper motor with home sensor NEMA size 11 x 40 mm single shaft 1/EA 단종
  M01-680-815 NM17AD-T4-MC04-HSM8  Stepper motor with home sensor NEMA size 17 x 33 mm double shaft 1/EA 단종
  M01-680-820 NM17AS-T4-MC04-HSM8  Stepper motor with home sensor NEMA size 17 x 33 mm single shaft 1/EA 단종
  M01-680-825 NM17CD-T4-MC04-HSM8  Stepper motor with home sensor NEMA size 17 x 47 mm double shaft 1/EA 단종
  M01-680-830 NM17CS-T4-MC04-HSM8  Stepper motor with home sensor NEMA size 17 x 47 mm single shaft 1/EA 단종
  M01-680-835 NM23AD-T4-MC04-HSM8  Stepper motor with home sensor NEMA size 23 x 39 mm double shaft 1/EA 단종
  M01-680-840 NM23AS-T4-MC04-HSM8  Stepper motor with home sensor NEMA size 23 x 39 mm single shaft 1/EA 단종
  M01-680-845 NM23CD-T4-MC04-HSM8  Stepper motor with home sensor NEMA size 23 x 47 mm double shaft 1/EA 단종
  M01-680-850 NM23CS-T4-MC04-HSM8  Stepper motor with home sensor NEMA size 23 x 47 mm single shaft 1/EA 단종
  M01-680-855 NM34AD-T4-MC04-HSM8  Stepper motor with home sensor NEMA size 34 x 66 mm double shaft 1/EA 단종
  M01-680-860 NM34AS-T4-MC04-HSM8  Stepper motor with home sensor NEMA size 34 x 66 mm single shaft 1/EA 단종
  M01-680-865 NM34CD-T4-MC04-HSM8  Stepper motor with home sensor NEMA size 34 x 126 mm double shaft 1/EA 단종
  M01-680-870 NM34CS-T4-MC04-HSM8  Stepper motor with home sensor NEMA size 34 x 126 mm single shaft 1/EA 단종
