Linear Stage

선형 이송장치

■ Linear Stage(선형 이송장치)은 4가지의 제품군으로 분류
  1. Motorized Stage with Built-in controller and Linear encoders
  2. Motorized Stage with Built-in controller and Motor encoders
  3. Motorized with Built-in controller
  4. Motorized Stage
■ 제품별 주요 특징은 하단 설명 참조


  • 1. Motorized Stage with Built-in controller and Linear encoders
      ■ 75 ~ 600 mm travel
      ■ Up to 13 µm accuracy over 600 mm travel
      ■ 50 ~ 100 kg load capacity
      ■ Up to 205 mm/s speed and up to 300 N thrust
      ■ Built-in controller; daisy-chains with other Zaber products
      ■ Integrated linear encoders with 50 nm resolution provide slip/stall detection and position correction
      ■ Inline and parallel drive configurations
      ■ Custom versions available

    2. Motorized Stage with Built-in controller and Motor encoders
      ■ 75, 150, 300, 450, 600 mm travel
      ■ 20 ~ 100 kg load capacity
      ■ Up to 840 mm/s speed and up to 300 N thrust
      ■ Built-in controller; daisy-chains with other Zaber products
      ■ Integrated, 500 CPR, motor mounted encoder provides slip/stall detection and recovery
      ■ Inline and parallel drive configurations
      ■ Ball screw and lead screw configurations
      ■ Custom versions available

    3. Motorized with Built-in controller
      ■ 25, 50, 100, 150, 200 mm travel
      ■ 3 ~ 50 kg load capacity
      ■ Up to 104 mm/s speed and up to 55 N thrust
      ■ Built-in controller; daisy-chains with other Zaber products
      ■ Custom versions available

    4. Motorized Stage
      ■ 10 ~ 1,550 mm travel
      ■ 3.5 ~100 kg load capacity
      ■ Up to 10 ~ 420 mm/s speed
      ■ Can be mounted in XY and XYZ configurations
      ■ Designed for use with a X-MCB1 Series stepper motor controller or any 2-phase stepper motor controller
      ■ Custom versions available




    • Motorized Stage with Built-in controller and Linear encoders
    상세 규격 표
    Cat. No. Model Description
    M01-680-005 X-LRQ075AL-DE51-KX14C Motorized, lead-screw driven, linear stage, 75 mm travel, integrated linear encoder and controller, fine resolution, low speed, inline drive
    M01-680-010 X-LRQ150AL-DE51-KX14C Motorized, lead-screw driven, linear stage, 150 mm travel, integrated linear encoder and controller, fine resolution, low speed, inline drive
    M01-680-015 X-LRQ300AL-DE51-KX14C Motorized, lead-screw driven, linear stage, 300 mm travel, integrated linear encoder and controller, fine resolution, low speed, inline drive
    M01-680-020 X-LRQ450AL-DE51-KX14C Motorized, lead-screw driven, linear stage, 450 mm travel, integrated linear encoder and controller, fine resolution, low speed, inline drive
    M01-680-025 X-LRQ600AL-DE51-KX14C Motorized, lead-screw driven, linear stage, 600 mm travel, integrated linear encoder and controller, fine resolution, low speed, inline drive
    M01-680-030 X-LRQ075AL-DE51C-KX14C Motorized, lead-screw driven, covered linear stage, linear stage, 75 mm travel, integrated linear encoder and controller, fine resolution, low speed, inline drive
    M01-680-035 X-LRQ150AL-DE51C-KX14C Motorized, lead-screw driven, covered linear stage, linear stage, 150 mm travel, integrated linear encoder and controller, fine resolution, low speed, inline drive
    M01-680-040 X-LRQ300AL-DE51C-KX14C Motorized, lead-screw driven, covered linear stage, linear stage, 300 mm travel, integrated linear encoder and controller, fine resolution, low speed, inline drive
    M01-680-045 X-LRQ450AL-DE51C-KX14C Motorized, lead-screw driven, covered linear stage, linear stage, 450 mm travel, integrated linear encoder and controller, fine resolution, low speed, inline drive
    M01-680-050 X-LRQ600AL-DE51C-KX14C Motorized, lead-screw driven, covered linear stage, linear stage, 600 mm travel, integrated linear encoder and controller, fine resolution, low speed, inline drive

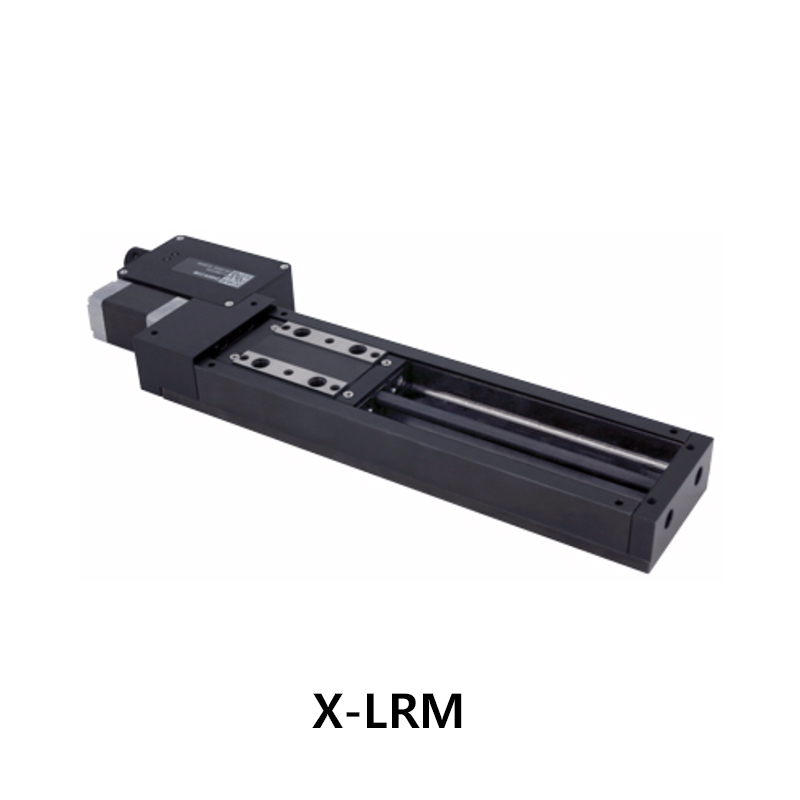

    M01-680-055 X-LRM100A-DE51-KX14A Motorized linear stage, integrated controller and linear encoder, 100 mm travel, fine resolution
    M01-680-060 X-LRM150A-DE51-KX14A Motorized linear stage, integrated controller and linear encoder, 150 mm travel, fine resolution
    M01-680-065 X-LRM200A-DE51-KX14A Motorized linear stage, integrated controller and linear encoder, 200 mm travel, fine resolution
    • Motorized Stage with Built-in controller and Linear encoders Specification
    상세 규격 표
    Specification
    Value Value Value

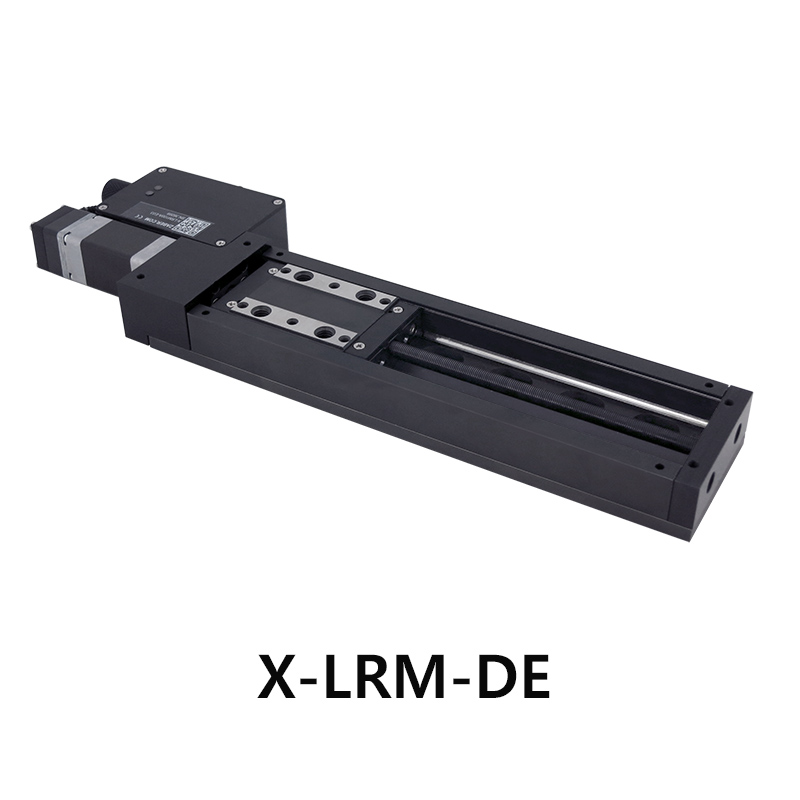

    Model X-LRQ-DE series X-LRQ-DEC series X-LRM-DE series
    Feature High precision stages with built-in controllers and linear encoders High precision stages with built-in controllers and linear encoders with dust cover Miniature, steel, motorized linear stages with built-in controllers and linear encoders.
    Built-in Controller Yes Yes Yes
    Encoder Type Linear quadrature encoder Linear quadrature encoder Linear quadrature encoder
    Encoder Resolution 50 nm 50 nm
    Communication Interface RS-232 RS-232 RS-232, USB 2.0
    Communication Protocol Zaber ASCII (Default), Zaber Binary Zaber ASCII (Default), Zaber Binary Zaber ASCII (Default), Zaber Binary
    Maximum Centered Load 1000 N 1000 N 500 N
    Maximum Cantilever Load 3000 N-cm 3000 N-cm 1500 N-cm
    Guide Type Recirculating Ball Linear Guide Recirculating Ball Linear Guide Recirculating ball bearing
    Maximum Current Draw 1200 mA 1200 mA 350 mA
    Power Supply 24-48 VDC 24-48 VDC 24-48 VDC
    Power Plug 2-pin screw terminal 2-pin screw terminal 2-pin Screw Terminal
    Motor Steps Per Rev 200 200 200
    Motor Type Stepper (2 phase) Stepper (2 phase) Stepper (2 phase)
    Motor Rated Current 2300 mA/phase 2300 mA/phase 600 mA/phase
    Inductance 2.8 mH/phase 2.8 mH/phase 3.5 mH/phase
    Default Resolution 1/64 of a step 1/64 of a step 1/64 of a step
    Data Cable Connection Locking 4-pin M8 Locking 4-pin M8 Locking 4-pin M8
    Limit or Home Sensing Magnetic home sensor Magnetic home sensor Magnetic hall sensor
    Manual Control Indexed knob with push switch Indexed knob with push switch Yes
    Axes of Motion 1 1
    LED Indicators Yes Yes Yes
    Mounting Interface M6 and M3 threaded holes M6 and M3 threaded holes M6 and M4 threaded holes
    Vacuum Compatible No No No
    Operating Temperature Range 0 to 50 degrees C 0 to 50 degrees C 1 to 50 degrees C
    RoHS Compliant Yes Yes Yes
    CE Compliant Yes Yes Yes
    Tranvel Range 75 ~ 600 mm 75 ~ 600 mm 100 ~200 nm
    Accuracy 13 ~ 15 um 13 ~ 15 um 15 um
    Maximum Speed 40 ~ 205 mm/s 40 ~ 205 mm/s 25 ~ 100 mm/s
    Maximum Continuous Thrust 100 ~ 200 N 100 ~ 200 N 25 N
    • Motorized Stage with Built-in controller and Motor encoders
    상세 규격 표
    Cat. No. Model Description

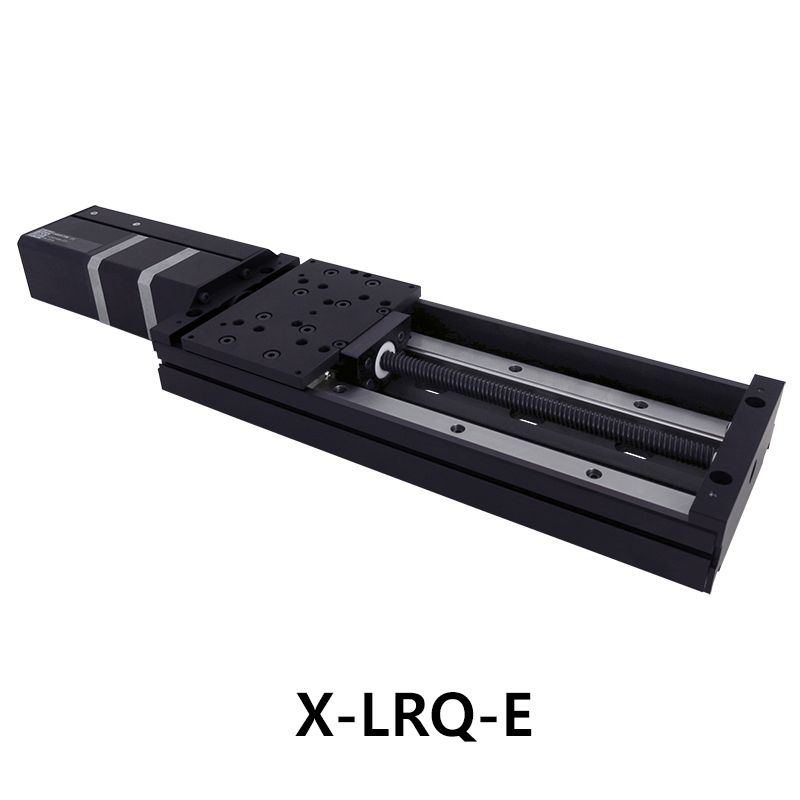

    M01-680-090 X-LRQ075AL-E01-KX14C Motorized, lead-screw driven, linear stage, 75 mm travel, integrated motor encoder and controller, fine resolution, low speed, inline drive
    M01-680-095 X-LRQ150AL-E01-KX14C Motorized, lead-screw driven, linear stage, 150 mm travel, integrated motor encoder and controller, fine resolution, low speed, inline drive
    M01-680-100 X-LRQ300AL-E01-KX14C Motorized, lead-screw driven, linear stage, 300 mm travel, integrated motor encoder and controller, fine resolution, low speed, inline drive
    M01-680-105 X-LRQ450AL-E01-KX14C Motorized, lead-screw driven, linear stage, 450 mm travel, integrated motor encoder and controller, fine resolution, low speed, inline drive
    M01-680-110 X-LRQ600AL-E01-KX14C Motorized, lead-screw driven, linear stage, 600 mm travel, integrated motor encoder and controller, fine resolution, low speed, inline drive

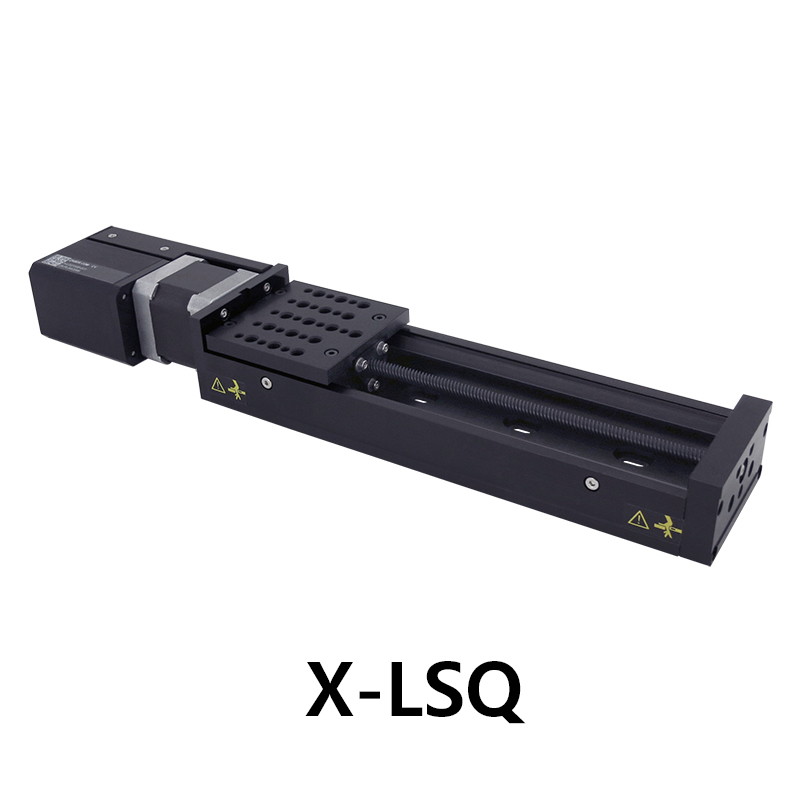

    M01-680-115 X-LSQ075A-E01-KX14C Motorized linear stage, integrated motor encoder and controller, 75 mm travel, fine resolution, low speed
    M01-680-120 X-LSQ150A-E01-KX14C Motorized linear stage, integrated motor encoder and controller, 150 mm travel, fine resolution, low speed
    M01-680-125 X-LSQ300A-E01-KX14C Motorized linear stage, integrated motor encoder and controller, 300 mm travel, fine resolution, low speed
    M01-680-130 X-LSQ450A-E01-KX14C Motorized linear stage, integrated motor encoder and controller, 450 mm travel, fine resolution, low speed
    M01-680-135 X-LSQ600A-E01-KX14C Motorized linear stage, integrated motor encoder and controller, 600 mm travel, fine resolution, low speed

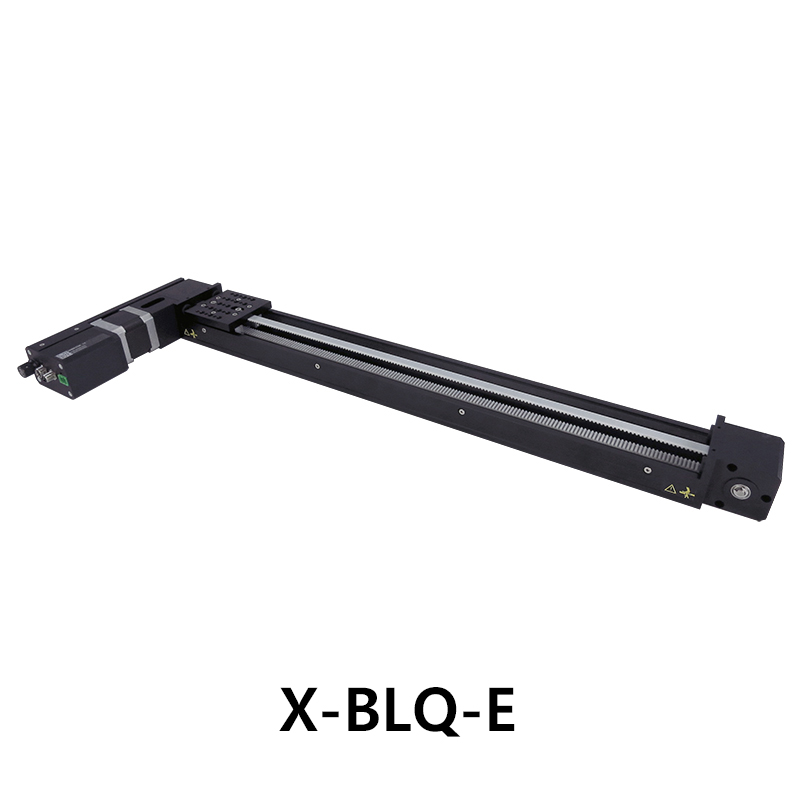

    M01-680-140 X-BLQ0070-E01-KX14C-SN2 Motorized, belt-driven, linear stage, integrated motor encoder and controller, 70 mm travel
    M01-680-145 X-BLQ0295-E01-KX14C-SN2 Motorized, belt-driven, linear stage, integrated motor encoder and controller, 295 mm travel
    M01-680-150 X-BLQ0595-E01-KX14C-SN2 Motorized, belt-driven, linear stage, integrated motor encoder and controller, 595 mm travel
    M01-680-155 X-BLQ1495-E01-KX14C-SN2 Motorized, belt-driven, linear stage, integrated motor encoder and controller, 1495 mm travel
    M01-680-160 X-BLQ2095-E01-KX14C-SN2 Motorized, belt-driven, linear stage, integrated motor encoder and controller, 2095 mm travel
    M01-680-165 X-BLQ3000-E01-KX14C-SN2 Motorized, belt-driven, linear stage, integrated motor encoder and controller, 3000 mm travel
    M01-680-170 X-LRM025A-E03-KX14A Motorized linear stage, integrated controller and motor encoder, 25 mm travel, fine resolution
    M01-680-175 X-LRM050A-E03-KX14A Motorized linear stage, integrated controller and motor encoder, 50 mm travel, fine resolution
    M01-680-180 X-LRM100A-E03-KX14A Motorized linear stage, integrated controller and motor encoder, 100 mm travel, fine resolution
    M01-680-185 X-LRM150A-E03-KX14A Motorized linear stage, integrated controller and motor encoder, 150 mm travel, fine resolution
    M01-680-190 X-LRM200A-E03-KX14A Motorized linear stage, integrated controller and motor encoder, 200 mm travel, fine resolution

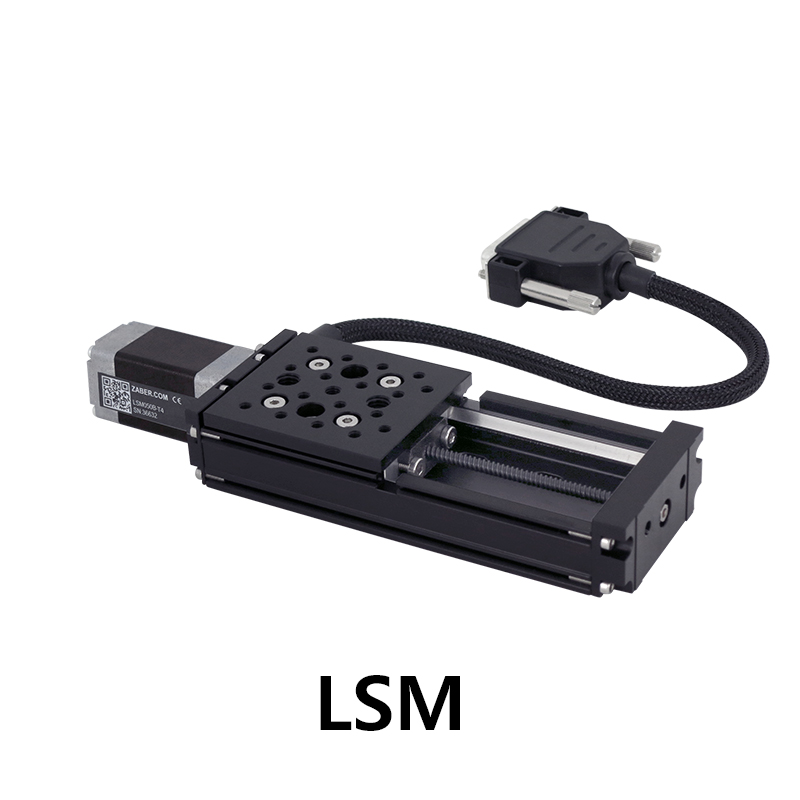

    M01-680-195 X-LSM025A-E03-KX14A Motorized linear stage, 25 mm travel, integrated motor encoder and controller, plus manual control
    M01-680-200 X-LSM050A-E03-KX14A Motorized linear stage, 50 mm travel, integrated motor encoder and controller, plus manual control
    M01-680-205 X-LSM100A-E03-KX14A Motorized linear stage, 100 mm travel, integrated motor encoder and controller, plus manual control
    M01-680-210 X-LSM150A-E03-KX14A Motorized linear stage, 150 mm travel, integrated motor encoder and controller, plus manual control
    M01-680-215 X-LSM200A-E03-KX14A Motorized linear stage, 200 mm travel, integrated motor encoder and controller, plus manual control
    • Motorized Stage with Built-in controller and Motor encoders Specification
    상세 규격 표
    Specification
    Value Value Value Value Value

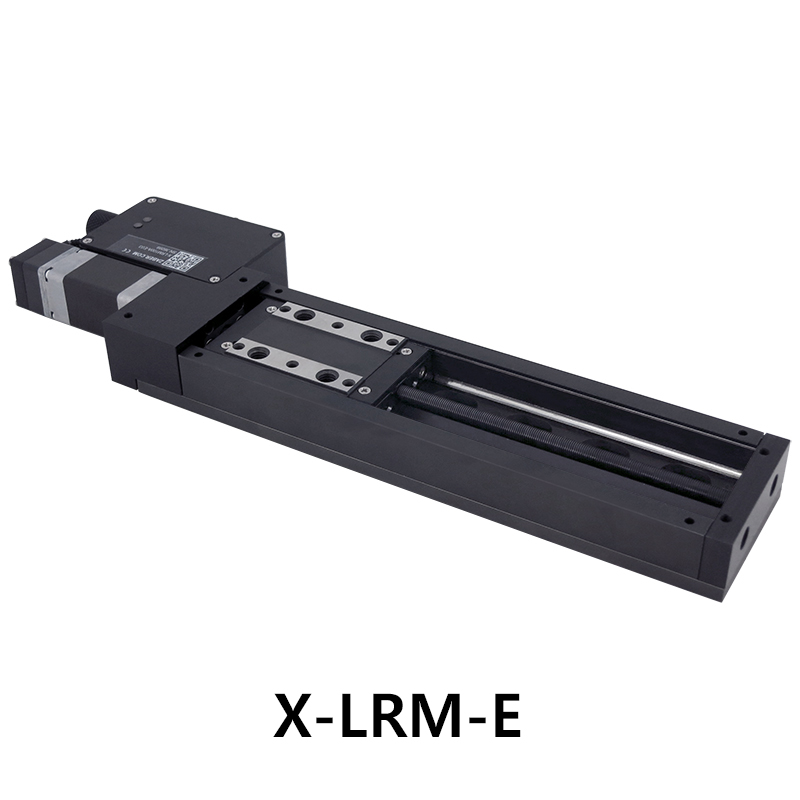

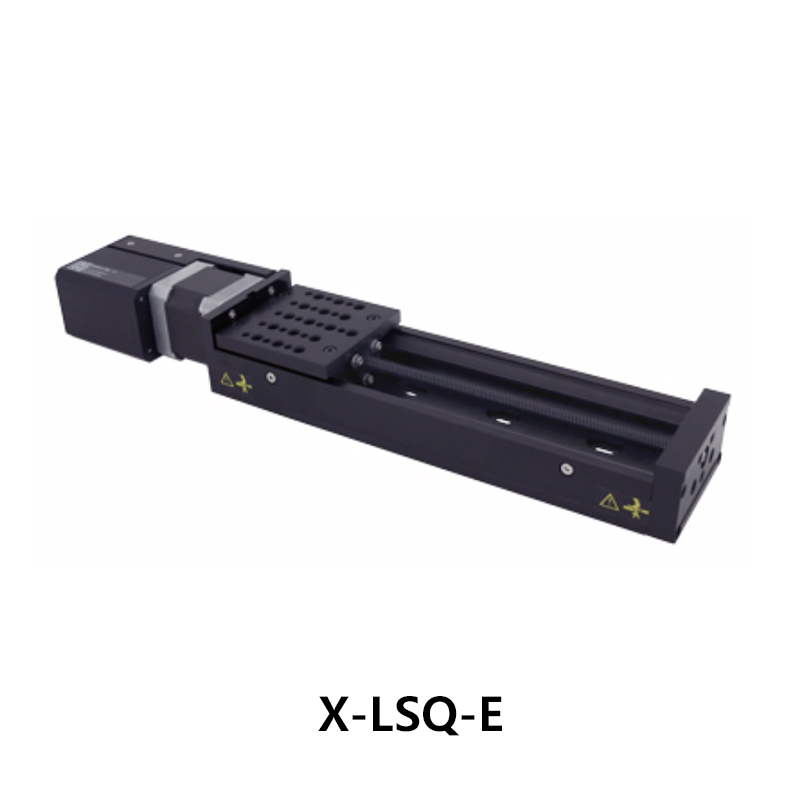

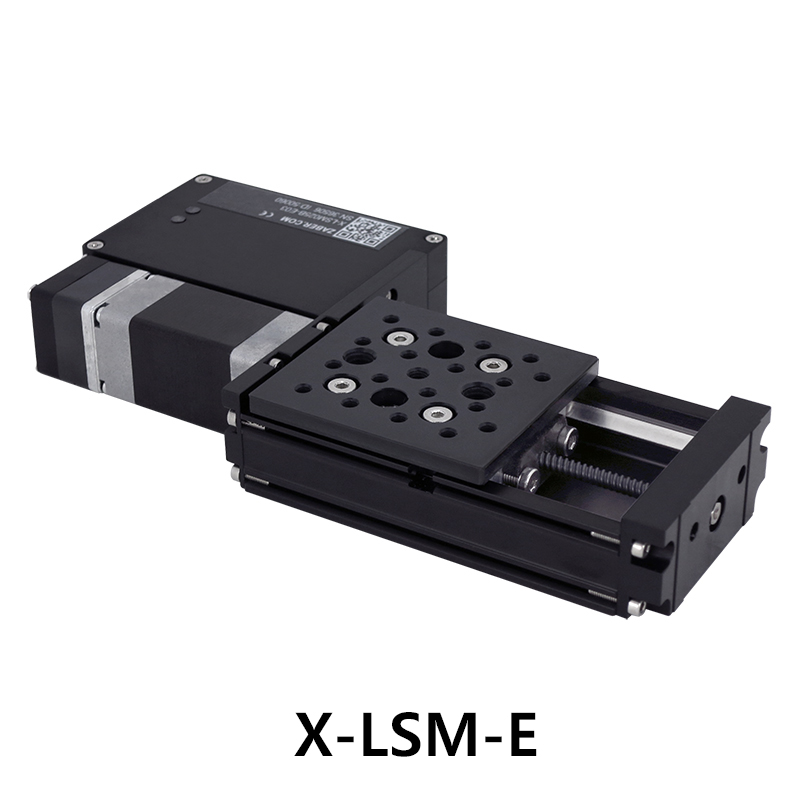

    Model X-LRQ-E series X-LSQ-E series X-BLQ-E sereis X-LRM-E Series X-LSM-E Series
    Feature Closed-loop stages with built-in stepper motors, motor encoders, and controllers Closed-loop stages with built-in stepper motors, motor encoders, and controllers Closed-loop, belt-driven linear stages with built-in stepper motors, motor encoders, and controllers Miniature, steel, motorized linear stages with built-in controllers and motor encoders Miniature motorized linear stages with built-in controllers
    Built-in Controller Yes Yes Yes Yes Yes
    Encoder Resolution 500 CPR 500 CPR 500 CPR 200 CPR 200 CPR
    Encoder Type Motor mounted rotary quadrature encoder Motor mounted rotary quadrature encoder Motor mounted rotary quadrature encoder Motor mounted rotary quadrature encoder Motor Mounted Rotary Quadrature Encoder
    Communication Interface RS-232 RS-232 RS-232 RS-232, USB 2.0 RS-232
    Communication Protocol Zaber ASCII (Default), Zaber Binary Zaber ASCII (Default), Zaber Binary Zaber ASCII (Default), Zaber Binary Zaber ASCII (Default), Zaber Binary Zaber ASCII (Default), Zaber Binary
    Maximum Centered Load 1000 N 200 N 200 N 500 N 100 N
    Maximum Cantilever Load 3000 N-cm 800 N-cm 600 N-cm 1500 N-cm 300 N-cm
    Guide Type Recirculating Ball Linear Guide Roller bearing Roller bearing Recirculating ball bearing Needle roller bearing
    Maximum Current Draw 1200 mA 810 mA 1100 mA 350 mA 350 mA
    Power Supply 24-48 VDC 24-48 VDC 24-48 VDC 24-48 VDC 24-48 VDC
    Power Plug 2-pin screw terminal 2-pin Screw Terminal 53.97 mm 2-pin Screw Terminal 2-pin Screw Terminal
    Motor Steps Per Rev 200 200 200 200 200
    Motor Type Stepper (2 phase) Stepper (2 phase) Stepper (2 phase) Stepper (2 phase) Stepper (2 phase)
    Motor Rated Current 2300 mA/phase 1250 mA/phase 1250 mA/phase 600 mA/phase 600 mA/phase
    Inductance 2.8 mH/phase 2.8 mH/phase 2.8 mH/phase 3.5 mH/phase 3.5 mH/phase
    Default Resolution 1/64 of a step 1/64 of a step 1/64 of a step 1/64 of a step 1/64 of a step
    Data Cable Connection Locking 4-pin M8 Locking 4-pin M8 Locking 4-pin M8 Locking 4-pin M8 Locking 4-pin M8
    Limit or Home Sensing Magnetic home sensor Magnetic home sensor Magnetic home sensor Magnetic hall sensor Magnetic hall sensor
    Manual Control Indexed knob with push switch Indexed knob with push switch Indexed knob with push switch Indexed knob with push switch Indexed knob with push switch
    Mounting Interface M6 and M3 threaded holes M6 threaded holes and 8-32 threaded holes M6 threaded holes and 8-32 threaded holes M3 and M6 threaded holes M3 and M6 threaded holes and M4 threaded centre hole
    Vacuum Compatible No No No No No
    Operating Temperature Range 0 to 50 degrees C 0 to 50 degrees C 0 to 50 degrees C 0 to 50 degrees C 0 to 50 degrees C
    Stage Parallelism < 100 µm < 100 µm < 10 µm < 25 µm
    RoHS Compliant Yes Yes Yes Yes Yes
    CE Compliant Yes Yes Yes Yes Yes
    Tranvel Range 75 ~ 600 mm 75 ~ 600 mm 70 ~ 3,000 mm 25 ~ 200 mm 25.4 ~ 203.2 mm
    Accuracy 15 ~ 150 um 15 ~ 150 um 200 ~ 3,000 um 8 ~60 um 8 ~ 61 um
    Maximum Speed 40 ~ 840 mm/s 42 ~ 1,000 mm/s 1,100 ~ 2,000 mm/s 25 ~ 100 mm/s 26 ~ 104 mm/s
    Maximum Continuous Thrust 25 ~ 200 N 18 ~ 100 N 20 N 25 N 25 N
    • Motorized with Built-in controller
    상세 규격 표
    Cat. No. Model Description
    M01-680-240 X-LSQ075A-KX14C Motorized linear stage, integrated controller, 75 mm travel, fine resolution, low speed
    M01-680-245 X-LSQ150A-KX14C Motorized linear stage, integrated controller, 150 mm travel, fine resolution, low speed
    M01-680-250 X-LSQ300A-KX14C Motorized linear stage, integrated controller, 300 mm travel, fine resolution, low speed
    M01-680-255 X-LSQ450A-KX14C Motorized linear stage, integrated controller, 450 mm travel, fine resolution, low speed
    M01-680-260 X-LSQ600A-KX14C Motorized linear stage, integrated controller, 600 mm travel, fine resolution, low speed
    M01-680-265 X-LRM025A-KX14A Motorized linear stage, integrated controller, 25 mm travel, fine resolution
    M01-680-270 X-LRM050A-KX14A Motorized linear stage, integrated controller, 50 mm travel, fine resolution
    M01-680-275 X-LRM100A-KX14A Motorized linear stage, integrated controller, 100 mm travel, fine resolution
    M01-680-280 X-LRM150A-KX14A Motorized linear stage, integrated controller, 150 mm travel, fine resolution
    M01-680-285 X-LRM200A-KX14A Motorized linear stage, integrated controller, 200 mm travel, fine resolution
    M01-680-290 X-LSM025A-KX14A Motorized linear stage, 25 mm travel, integrated controller, plus manual control
    M01-680-295 X-LSM050A-KX14A Motorized linear stage, 50 mm travel, integrated controller, plus manual control
    M01-680-300 X-LSM100A-KX14A Motorized linear stage, 100 mm travel, integrated controller, plus manual control
    M01-680-305 X-LSM150A-KX14A Motorized linear stage, 150 mm travel, integrated controller, plus manual control
    M01-680-310 X-LSM200A-KX14A Motorized linear stage, 200 mm travel, integrated controller, plus manual control
    M01-680-315 X-LHM025A-KX14A Motorized linear stage, 25 mm travel, integrated controller, plus manual control
    M01-680-320 X-LHM050A-KX14A Motorized linear stage, 50 mm travel, integrated controller, plus manual control
    M01-680-325 X-LHM100A-KX14A Motorized linear stage, 100 mm travel, integrated controller, plus manual control
    M01-680-330 X-LHM150A-KX14A Motorized linear stage, 150 mm travel, integrated controller, plus manual control
    M01-680-335 X-LHM200A-KX14A Motorized linear stage, 200 mm travel, integrated controller, plus manual control
    • Motorized with Built-in controller Specification
    상세 규격 표
    Specification
    Value Value Value Value

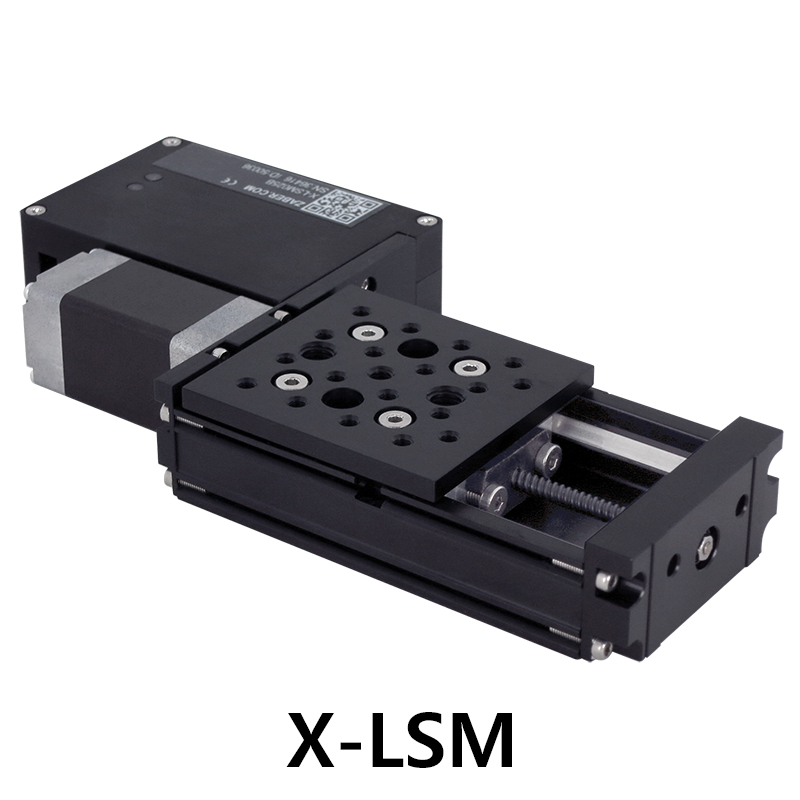

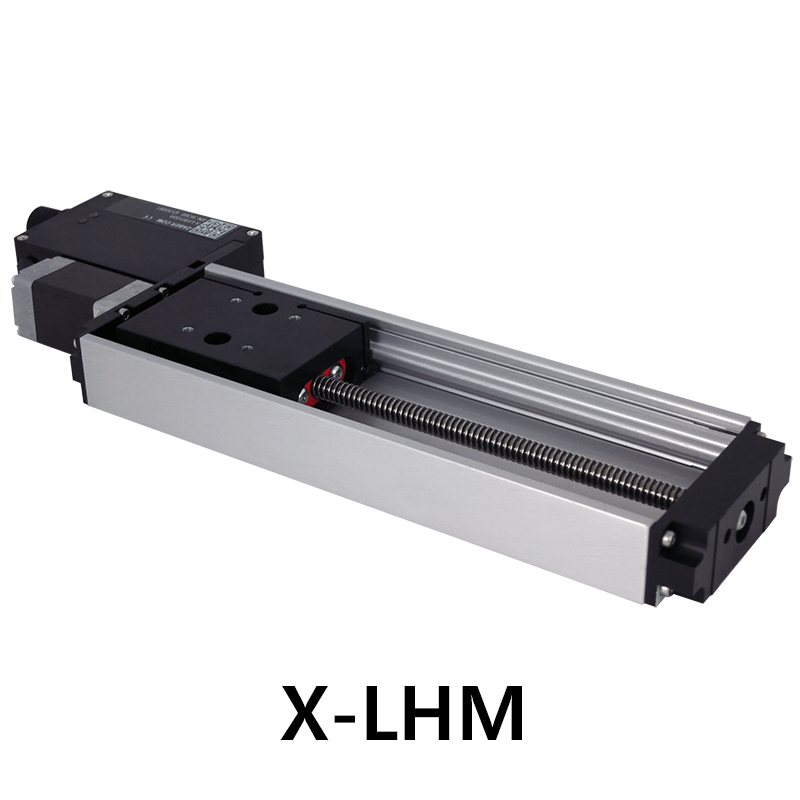

    Model X-LSQ series X-LRM series X-LSM series X-LHM series
    Feature Motorized linear stages with built-in controllers Miniature, steel, motorized linear stages with built-in controllers Miniature motorized linear stages with built-in controllers Motorized linear stages with built-in controllers
    Built-in Controller Yes Yes Yes Yes
    Encoder Type None None None None
    Communication Interface RS-232 RS-232, USB 2.0 RS-232 RS-232
    Communication Protocol Zaber ASCII (Default), Zaber Binary Zaber ASCII (Default), Zaber Binary Zaber ASCII (Default), Zaber Binary Zaber ASCII (Default), Zaber Binary
    Maximum Centered Load 200 N 500 N 100 N 30 N
    Maximum Cantilever Load 800 N-cm 1500 N-cm 300 N-cm 50 N-cm
    Guide Type Roller bearing Recirculating ball bearing Needle roller bearing Plain bearing
    Vertical Runout < 13 µm < 8 µm < 8 µm
    Horizontal Runout < 13 µm < 12 µm < 12 µm
    Maximum Current Draw 810 mA 350 mA 350 mA 350 mA
    Power Supply 24-48 VDC 24-48 VDC 24-48 VDC 24-48 VDC
    Power Plug 2-pin Screw Terminal 2-pin Screw Terminal 2-pin Screw Terminal 2-pin Screw Terminal
    Motor Steps Per Rev 200 200 200 200
    Motor Type Stepper (2 phase) Stepper (2 phase) Stepper (2 phase) Stepper (2 phase)
    Motor Rated Current 1250 mA/phase 600 mA/phase 600 mA/phase 600 mA/phase
    Inductance 2.8 mH/phase 3.5 mH/phase 3.5 mH/phase 3.5 mH/phase
    Default Resolution 1/64 of a step 1/64 of a step 1/64 of a step 1/64 of a step
    Data Cable Connection Locking 4-pin M8 Locking 4-pin M8 Locking 4-pin M8 Locking 4-pin M8
    Mechanical Drive System Precision lead screw Precision lead screw Precision lead screw Lead screw
    Limit or Home Sensing Magnetic home sensor Magnetic hall sensor Magnetic hall sensor Magnetic hall sensor
    Manual Control Indexed knob with push switch Yes Yes
    Mounting Interface M6 threaded holes and 8-32 threaded holes M3 and M6 threaded holes M3 and M6 threaded holes and M4 threaded center hole M3 threaded holes
    Vacuum Compatible No No No No
    Operating Temperature Range 0 to 50 degrees C 0 to 50 degrees C 0 to 50 degrees C 0 to 50 degrees C
    Stage Parallelism < 100 µm < 10 µm < 25 µm
    RoHS Compliant Yes Yes Yes Yes
    CE Compliant Yes Yes Yes Yes
    Tranvel Range 75 ~ 600 mm 25 ~ 200 mm 25.4 ~ 203.2 mm 25.4 ~ 203.2 mm
    Accuracy 15 ~ 150 um 8 ~ 60 um 8 ~ 61 um 50 ~ 225 um
    Maximum Speed 42 ~ 1,000 mm/s 25 ~ 100 mm/s 26 ~ 104 mm/s 65 mm/s
    Maximum Continuous Thrust 18 ~ 100 N 25 N 25 N 25 N
    • Motorized Stage
    상세 규격 표
    Cat. No. Model Description
    M01-680-350 LSM025A-T4-MC04 Motorized linear stage, 25 mm travel (controller required)
    M01-680-355 LSM050A-T4-MC04 Motorized linear stage, 50 mm travel (controller required)
    M01-680-360 LSM100A-T4-MC04 Motorized linear stage, 100 mm travel (controller required)
    M01-680-365 LSM150A-T4-MC04 Motorized linear stage, 150 mm travel (controller required)
    M01-680-370 LSM200A-T4-MC04 Motorized linear stage, 200 mm travel (controller required)
    M01-680-375 LST0250A-T3-MC03 Motorized linear stage, 250 mm travel, fine resolution, low speed
    M01-680-380 LST0500A-T3-MC03 Motorized linear stage, 500 mm travel, fine resolution, low speed
    M01-680-385 LST0750A-T3-MC03 Motorized linear stage, 750 mm travel, fine resolution, low speed
    M01-680-390 LST1000A-T3-MC03 Motorized linear stage, 1000 mm travel, fine resolution, low speed
    M01-680-395 LST1500A-T3-MC03 Motorized linear stage, 1500 mm travel, fine resolution, low speed
    M01-680-400 LSA10A-T4-MC04 Motorized linear stage, 10 mm travel (controller required)
    M01-680-405 LSA25A-T4-MC04 Motorized linear stage, 25 mm travel (controller required)
    • Motorized Stage Specification
    상세 규격 표
    Specification
    Value Value Value
    Model LSM series LST series LSA series
    Feature Miniature motorized linear stages High-load, motorized linear stages Micro motorized linear stages
    Built-in Controller No No No
    Recommended Controller X-MCB1 (48 V) Recommended X-MCB1 (48 V) Recommended X-MCB1 (48 V) Recommended
    Encoder Type None None None
    Maximum Centered Load 100 N 1000 N
    Maximum Cantilever Load 300 N-cm 3000 N-cm
    Guide Type Needle roller bearing Roller bearing Ball bearing
    Vertical Runout < 8 µm < 13 µm < 4 µm
    Horizontal Runout < 12 µm < 13 µm < 13 µm
    Motor Steps Per Rev 200 200 200
    Motor Type Stepper (2 phase) Stepper (2 phase) Stepper (2 phase)
    Motor Rated Current 600 mA/phase 2100 mA/phase 240 mA/phase
    Inductance 3.5 mH/phase 6.4 mH/phase 5 mH/phase
    Mechanical Drive System Precision lead screw Precision lead screw Precision lead screw
    Mounting Interface M3 and M6 threaded holes and M4 threaded center hole M6 and M3 threaded holes M2 and M3 threaded holes and M4 threaded centre hole
    Limit or Home Sensing Magnetic hall sensor Magnetic home sensor Magnetic hall sensor
    Vacuum Compatible No No
    Operating Temperature Range 0 to 50 degrees C 0 to 50 degrees C 0 to 50 degrees C
    RoHS Compliant Yes Yes Yes
    CE Compliant Yes Yes Yes
    Tranvel Range 25.4 ~ 203.2 mm 254 ~ 1500 mm 10 or 25 mm
    Accuracy 8 ~ 61 um 63 ~ 375 um 18 or 24 um
    Maximum Speed 26 ~ 104 mm/s 22 ~ 420 mm/s 10 mm/s
    Maximum Continuous Thrust 25 N 80 ~ 560 N 25 N

Motorized Stage with Built-in controller and Linear encoders
Cat. No Model Description Unit Price(VAT별도) 주문
  M01-680-005 X-LRQ075AL-DE51-KX14C  linear stage 75 mm travel linear encoder and controller 1/EA 단종
  M01-680-010 X-LRQ150AL-DE51-KX14C  linear stage 150 mm travel linear encoder and controller 1/EA 단종
  M01-680-015 X-LRQ300AL-DE51-KX14C  linear stage 300 mm travel linear encoder and controller 1/EA 단종
  M01-680-020 X-LRQ450AL-DE51-KX14C  linear stage 450 mm travel linear encoder and controller 1/EA 단종
  M01-680-025 X-LRQ600AL-DE51-KX14C  linear stage 600 mm travel linear encoder and controller 1/EA 단종
  M01-680-030 X-LRQ075AL-DE51C-KX14C  covered linear stage 75 mm travel linear encoder and controller 1/EA 단종
  M01-680-035 X-LRQ150AL-DE51C-KX14C  covered linear stage 150 mm travel linear encoder and controller 1/EA 단종
  M01-680-040 X-LRQ300AL-DE51C-KX14C  covered linear stage 300 mm travel linear encoder and controller 1/EA 단종
  M01-680-045 X-LRQ450AL-DE51C-KX14C  covered linear stage 450 mm travel linear encoder and controller 1/EA 단종
  M01-680-050 X-LRQ600AL-DE51C-KX14C  covered linear stage 600 mm travel linear encoder and controller 1/EA 단종
  M01-680-055 X-LRM100A-DE51-KX14A  linear stage 100 mm travel linear encoder and controller 1/EA 단종
  M01-680-060 X-LRM150A-DE51-KX14A  linear stage 150 mm travel linear encoder and controller 1/EA 단종
  M01-680-065 X-LRM200A-DE51-KX14A  linear stage 200 mm travel linear encoder and controller 1/EA 단종

Motorized Stage with Built-in controller and Motor encoders
Cat. No Model Description Unit Price(VAT별도) 주문
  M01-680-090 X-LRQ075AL-E01-KX14C  linear stage lead-screw driven 75 mm travel motor encoder and controller 1/EA 단종
  M01-680-095 X-LRQ150AL-E01-KX14C  linear stage lead-screw driven 150 mm travel motor encoder and controller 1/EA 단종
  M01-680-100 X-LRQ300AL-E01-KX14C  linear stage lead-screw driven 300 mm travel motor encoder and controller 1/EA 단종
  M01-680-105 X-LRQ450AL-E01-KX14C  linear stage lead-screw driven 450 mm travel motor encoder and controller 1/EA 단종
  M01-680-110 X-LRQ600AL-E01-KX14C  linear stage lead-screw driven 600 mm travel motor encoder and controller 1/EA 단종
  M01-680-115 X-LSQ075A-E01-KX14C  linear stage 75 mm travel motor encoder and controller 1/EA 단종
  M01-680-120 X-LSQ150A-E01-KX14C  linear stage 150 mm travel motor encoder and controller 1/EA 단종
  M01-680-125 X-LSQ300A-E01-KX14C  linear stage 300 mm travel motor encoder and controller 1/EA 단종
  M01-680-130 X-LSQ450A-E01-KX14C  linear stage 450 mm travel motor encoder and controller 1/EA 단종
  M01-680-135 X-LSQ600A-E01-KX14C  linear stage 600 mm travel motor encoder and controller 1/EA 단종
  M01-680-140 X-BLQ0070-E01-KX14C-SN2  linear stage belt-driven 70 mm travel motor encoder and controller 1/EA 단종
  M01-680-145 X-BLQ0295-E01-KX14C-SN2  linear stage belt-driven 295 mm travel motor encoder and controller 1/EA 단종
  M01-680-150 X-BLQ0595-E01-KX14C-SN2  linear stage belt-driven 595 mm travel motor encoder and controller 1/EA 단종
  M01-680-155 X-BLQ1495-E01-KX14C-SN2  linear stage belt-driven 1495 mm travel motor encoder and controller 1/EA 단종
  M01-680-160 X-BLQ2095-E01-KX14C-SN2  linear stage belt-driven 2095 mm travel motor encoder and controller 1/EA 단종
  M01-680-165 X-BLQ3000-E01-KX14C-SN2  linear stage belt-driven 3000 mm travel motor encoder and controller 1/EA 단종
  M01-680-170 X-LRM025A-E03-KX14A  linear stage 25 mm travel motor encoder and controller 1/EA 단종
  M01-680-175 X-LRM050A-E03-KX14A  linear stage 50 mm travel motor encoder and controller 1/EA 단종
  M01-680-180 X-LRM100A-E03-KX14A  linear stage 100 mm travel motor encoder and controller 1/EA 단종
  M01-680-185 X-LRM150A-E03-KX14A  linear stage 150 mm travel motor encoder and controller 1/EA 단종
  M01-680-190 X-LRM200A-E03-KX14A  linear stage 200 mm travel motor encoder and controller 1/EA 단종
  M01-680-195 X-LSM025A-E03-KX14A  linear stage plus manual control 25 mm travel motor encoder and controller 1/EA 단종
  M01-680-200 X-LSM050A-E03-KX14A  linear stage plus manual control 50 mm travel motor encoder and controller 1/EA 단종
  M01-680-205 X-LSM100A-E03-KX14A  linear stage plus manual control 100 mm travel motor encoder and controller 1/EA 단종
  M01-680-210 X-LSM150A-E03-KX14A  linear stage plus manual control 150 mm travel motor encoder and controller 1/EA 단종
  M01-680-215 X-LSM200A-E03-KX14A  linear stage plus manual control 200 mm travel motor encoder and controller 1/EA 단종

Motorized with Built-in controller
Cat. No Model Description Unit Price(VAT별도) 주문
  M01-680-240 X-LSQ075A-KX14C  linear stage 75 mm travel controller 1/EA 단종
  M01-680-245 X-LSQ150A-KX14C  linear stage 150 mm travel controller 1/EA 단종
  M01-680-250 X-LSQ300A-KX14C  linear stage 300 mm travel controller 1/EA 단종
  M01-680-255 X-LSQ450A-KX14C  linear stage 450 mm travel controller 1/EA 단종
  M01-680-260 X-LSQ600A-KX14C  linear stage 600 mm travel controller 1/EA 단종
  M01-680-265 X-LRM025A-KX14A  linear stage 25 mm travel controller 1/EA 단종
  M01-680-270 X-LRM050A-KX14A  linear stage 50 mm travel controller 1/EA 단종
  M01-680-275 X-LRM100A-KX14A  linear stage 100 mm travel controller 1/EA 단종
  M01-680-280 X-LRM150A-KX14A  linear stage 150 mm travel controller 1/EA 단종
  M01-680-285 X-LRM200A-KX14A  linear stage 200 mm travel controller 1/EA 단종
  M01-680-290 X-LSM025A-KX14A  linear stage plus manual control 25 mm travel controller 1/EA 단종
  M01-680-295 X-LSM050A-KX14A  linear stage plus manual control 50 mm travel controller 1/EA 단종
  M01-680-300 X-LSM100A-KX14A  linear stage plus manual control 100 mm travel controller 1/EA 단종
  M01-680-305 X-LSM150A-KX14A  linear stage plus manual control 150 mm travel controller 1/EA 단종
  M01-680-310 X-LSM200A-KX14A  linear stage plus manual control 200 mm travel controller 1/EA 단종
  M01-680-315 X-LHM025A-KX14A  linear stage plus manual control 25 mm travel controller 1/EA 단종
  M01-680-320 X-LHM050A-KX14A  linear stage plus manual control 50 mm travel controller 1/EA 단종
  M01-680-325 X-LHM100A-KX14A  linear stage plus manual control 100 mm travel controller 1/EA 단종
  M01-680-330 X-LHM150A-KX14A  linear stage plus manual control 150 mm travel controller 1/EA 단종
  M01-680-335 X-LHM200A-KX14A  linear stage plus manual control 200 mm travel controller 1/EA 단종

Motorized Stage
Cat. No Model Description Unit Price(VAT별도) 주문
  M01-680-350 LSM025A-T4-MC04  linear stage 25 mm travel (controller required) 1/EA 단종
  M01-680-355 LSM050A-T4-MC04  linear stage 50 mm travel (controller required) 1/EA 단종
  M01-680-360 LSM100A-T4-MC04  linear stage 100 mm travel (controller required) 1/EA 단종
  M01-680-365 LSM150A-T4-MC04  linear stage 150 mm travel (controller required) 1/EA 단종
  M01-680-370 LSM200A-T4-MC04  linear stage 200 mm travel (controller required) 1/EA 단종

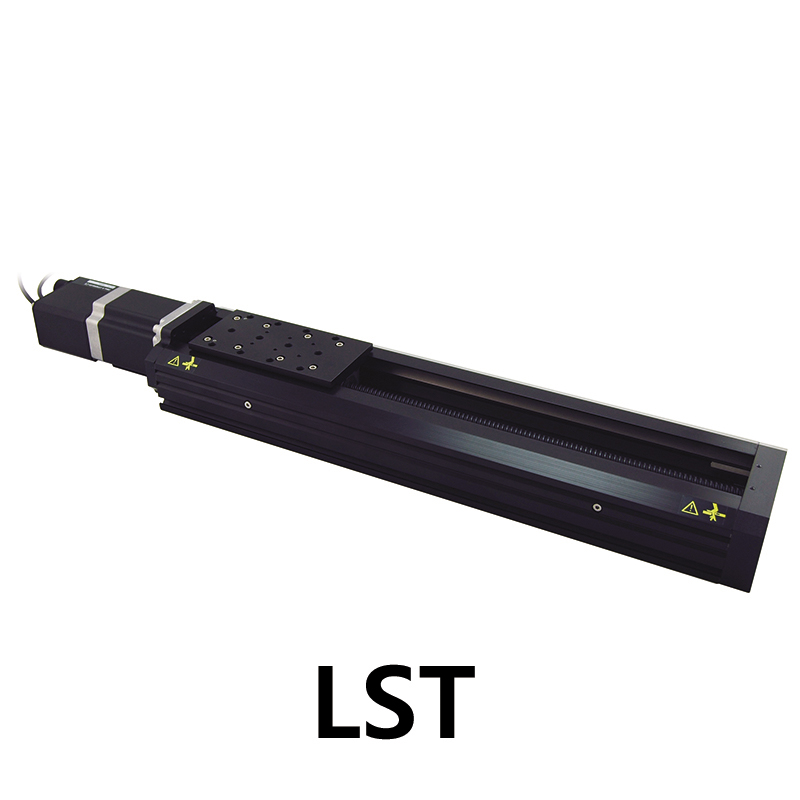

  M01-680-375 LST0250A-T3-MC03  linear stage 250 mm travel 1/EA 단종
  M01-680-380 LST0500A-T3-MC03  linear stage 500 mm travel 1/EA 단종
  M01-680-385 LST0750A-T3-MC03  linear stage 750 mm travel 1/EA 단종
  M01-680-390 LST1000A-T3-MC03  linear stage 1000 mm travel 1/EA 단종
  M01-680-395 LST1500A-T3-MC03  linear stage 1500 mm travel 1/EA 단종

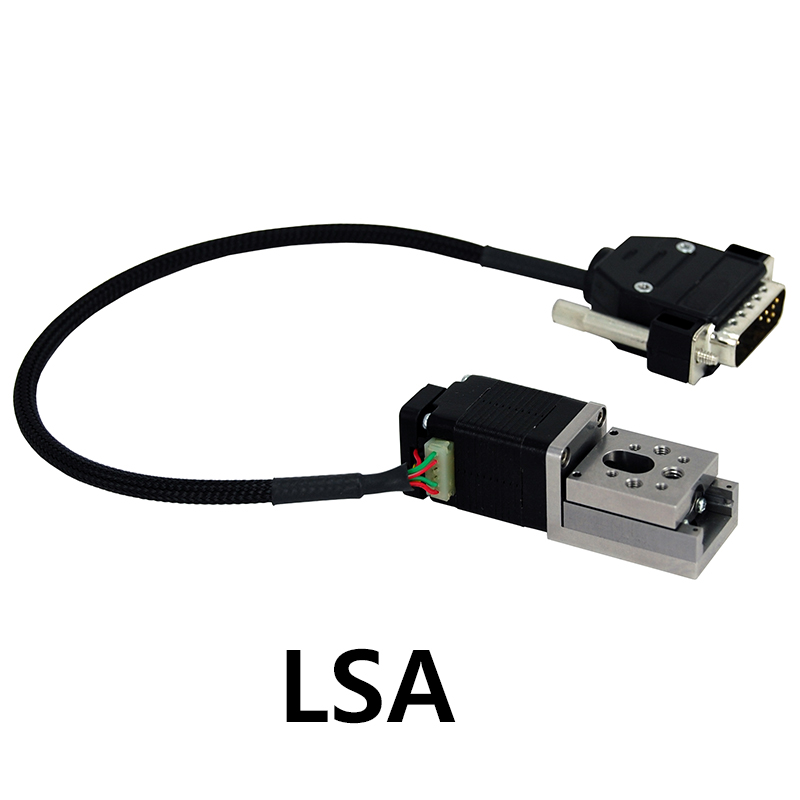

  M01-680-400 LSA10A-T4-MC04  linear stage 10 mm travel (controller required) 1/EA 단종
  M01-680-405 LSA25A-T4-MC04  linear stage 25 mm travel (controller required) 1/EA 단종




배송안내

택배 배송을 기본으로 하며 고객님의 요청에 의해 화물로 배송이 가능합니다.
고객님의 요청에 의한 긴급 배송(고속버스 화물, 퀵서비스 등)으로 인한 물류비용은 고객님의 부담입니다.
제품 설치 및 교육이 필요한 경우는 Off-Line으로 본사 기술부와 미리 논의 하시고, 직납 일정등의 협의를 부탁드립니다.

배송 기간

재고가 있는 품목에 한하여 입금 확인 후 2일 이내에 발송 됩니다. (입금 확인은 당일 3시 마감되며, 3시 이후 입금 건은 익일 처리 됩니다.)
택배의 경우 일반적으로 발송일로부터 3~7일, 도서/산간/오지 등 교통이 불편한 지역의 경우 4~8일(토.일, 공휴일 제외) 정도 소요됩니다.

불가 항력의 사유(일시품절/제조사로부터의 제품 수급 문제/천재지변 등)로 배송이 지연 될 경우 고객님께 연락을 드리겠습니다.
수입품목의 공급 및 재고 상태는 주문시점에 따라 달라질 수 있으며, 공급이 어려울 경우 주문접수 후 주문이 취소 될 수 있습니다.
재고가 없는 상품의 경우 상품이 입고 된 이후 발송이 가능하므로, 안내 받으신 배송기간 보다 다소 연장될 수 있습니다.
제품 준비 과정에 차질이 생겨 늦어질 경우에는 고객님께 연락을 드리겠습니다.
주문하신 상품은 결제 확인 후 발송됩니다.
결제 후 메일 [ info@lkls.co.kr ]이나 전화 [ 02-482-5557 ]로 연락 주시면 더욱 빨리 처리 해 드리겠습니다.

배송 지역

전국 어느 지역이나 배송 가능합니다. (단, 지역에 따라서 배송기간에 다소 차이가 있을 수 있습니다.)

배송 운임

주문 금액 기준 (부가세 별도) 총액 5만원 이상 주문시에는 무료로 배송해 드립니다. (택배기준)
단, 5만원 미만 주문 시 착불 발송되며, 요청에 따라 주문자 사전 결제로 선불 배송 가능합니다.
택배 배송이 불가능한 상품(장비 류 등)이나, ‘운임비 별도’로 명시 된 상품, 고객요청에 의한 운동수단 이용 시 배송비는 주문자 부담으로 진행됨에 유의 해 주시기 바랍니다.

배송 확인 방법

My Page의 주문/배송 내역에서 확인 가능합니다.

교환 및 반품 안내

상품에 하자가 있거나 주문한 상품과 다를 경우, 수령일로부터 15일 이내인 경우에 한하여 1:1 상품교환 또는 전액 환불 조치 해드리며,
이에 소요되는 모든 비용 또한 (주)랩마트에서 부담합니다.
제품에 하자는 없지만, 다른 상품으로 교환하거나 반품하고자 할 경우, 수령일로 부터 15일 이내이며 사용하지 않은 새 제품인 경우에 한하여 조치해 드립니다.
이에 소요되는 비용은 고객님 부담입니다. (제품 사용 후 변심에 의한 교환 및 환불은 불가)
제품의 교환 및 반품 시에는 상품 비닐 및 박스(Brand Box)를 수령하신 상태 그대로 보존하고 있을 경우에만 가능합니다.
교환 및 반품 택배 보내실 때 상품 박스(Brand Box)가 손상되지 않도록 반드시 외부에 박스 한 겹 더 포장 부탁드립니다.

교환 및 반품, 환불이 불가능 한 경우

1. 이용자에게 책임이 있는 사유로 제품이 훼손된 경우
2. 이용자의 사용 또는 일부 소비에 의하여 재화 등의 가치가 현저히 감소한 경우
3. 제품의 포장(비닐 및 상품박스)을 훼손 한 경우
4. 주문 당시 재고가 없어서 국내 / 해외 조달 분 중 수입 발주 되어진 상품
* 재고 상품이 아닌 경우, 수입 발주 되어진 상품의 주문 취소도 불가

환불 안내

현금 결제의 경우 구매자의 이름(또는 회사명)으로 개설된 은행계좌로 송금되며, 카드 결제의 경우 카드 승인 취소로 조치 해 드립니다.
